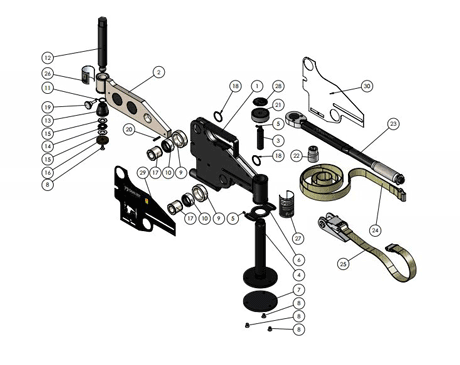

FA4TM Flange Alignment Tool Repair Parts List
ITEM |
PART No. |
DESCRIPTION |
QUANTITY |
|---|---|---|---|
| 1 | 220100-01 | Main Body | 01 ea |
| 2 | 220200-01 | Sliding Arm | 01 ea |
| 3 | 220700-01 | Leg Screw Extension | 01 ea |
| 4 | 220600-01 | Leg Screw | 01 ea |
| 5 | 300401-01 | M5X6 Grub Screw | 02 ea |
| 6 | 230802-01 | Buckle | 01 ea |
| 7 | 230803-01 | Round Base Pad | 01 ea |
| 8 | 400901-01 | Counter Sunk Screw M6X10 | 04 ea |
| 9 | 401601-01 | Outer Roller | 02 ea |
| 10 | 401501-01 | Needle Bearing | 02 ea |
| 11 | 400401-01 | Spring Clip | 01 ea |
| 12 | 400301-01 | Screw Bolt | 01 ea |
| 13 | 400501-01 | Swivel | 01 ea |
| 14 | 404701-01 | Thrust Race | 01 ea |
| 15 | 404801-01 | Thrust Washer | 02 ea |
| 16 | 400801-01 | Friction Pad | 01 ea |
| 17 | 220500-01 | Roller Shaft | 02 ea |
| 18 | 901601-01 | Spiral Clip | 02 ea |
| 19 | 230203-01 | M6 Release Knob | 01 ea |
| 20 | 403201-01 | Roller Pin | 01 ea |
| 21 | 713001-01 | Release Valve | 01 ea |
| 22 | 400204-01 | 22 mm Socket | 01 ea |
| 23 | 400203-01 | Torque Wrench | 01 ea |
| 24 | 400280-01 | Ratchet Strap | 01 ea |
| 25 | 400270-01 | Ratchet | 01 ea |
| 26 | 070004-01 | Logo For Wing | 01 ea |
| 27 | 070272-01 | Equalizer L. For Boss | 01 ea |
| 28 | 070273-01 | Drop Leg Knob Sticker | 01 ea |
| 29 | 070270-01 | Body Plate Sticker L. | 01 ea |
| 30 | 070271-01 | Body Plate Sticker R. | 01 ea |
