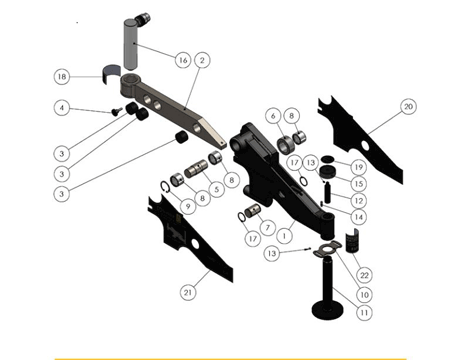

FA9TE Flange Alignment Tool Repair Parts List
ITEM |
PART No. |
DESCRIPTION |
QUANTITY |
|---|---|---|---|
| 1 | 230100-01 | Main Body | 01 ea |
| 2 | 230200-01 | Wing Arm | 01 ea |
| 3 | 230202-01 | Plastic Insert | 03 ea |
| 4 | 230203-01 | M6 Release Knob | 03 ea |
| 5 | 230300-01 | Front Roller Pin | 01 ea |
| 6 | 230400-01 | Rear Roller | 01 ea |
| 7 | 230500-01 | Rear Roller Pin | 01 ea |
| 8 | 230600-01 | Needle Bearing | 03 ea |
| 9 | 230700-01 | Circlip O/D 40 | 01 ea |
| 10 | 230802-01 | Buckle | 01 ea |
| 11 | 220600-01 | Leg Screw | 01 ea |
| 12 | 220700-01 | Leg Screw Ext. | 01 ea |
| 13 | 300401-01 | M5x6 Set Screw | 01 ea |
| 14 | 641201-01 | Dowel Pin 6x18 | 01 ea |
| 15 | 713001-01 | Release Valve | 01 ea |
| 16 | 903101-01 | 6T H. Cylinder | 01 ea |
| 17 | 901601-01 | Spirol Clip | 02 ea |
| 18 | 070233-01 | Logo For Wing | 01 ea |
| 19 | 070273-01 | Drop L. Knob Sticker | 01 ea |
| 20 | 070276-01 | Body Plate Sticker L. | 01 ea |
| 21 | 070277-01 | Body Plate Sticker R. | 01 ea |
| 22 | 070278-01 | Eq. Logo For Boss | 01 ea |
| 23 | 400270-01 | Ratchet (Not Illustrated) | 01 ea |
| 24 | 400280-01 | Ratchet Strap(Not Illustrated) | 01 ea |
